Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance

Type : Roller, Ball

Structure : Spherical

Applicable Industries : Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction works , Energy & Mining, Other

Brand Name : RHF

Model Number : 11204-11212

Precision Rating : P0 P2 P4 P5 P6

Seals Type : OPEN

Number of Row : Double row, Double

Place of Origin : Shandong, China

Material : Chrome Steel GCr15

Cage material : Steel/ Copper/ Nylon

Lubrication : Grease or Oil Lubricated

Feature : Long Life Low Noise

Service : OEM Customized Services

Size : Standard Size

Weight : 0.18-1.15kg

Warranty : 1 Year

Packaging Details : 1.Single wooden case+Pallet
2.Plastic Sleeve Packing+Carton+Pallet
3.Single Box+Cartons+Pallet
4.As customer request

MOQ : 100 sets

Price : $16.43/sets 100-999 sets

Contact Now

Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance

Product Description

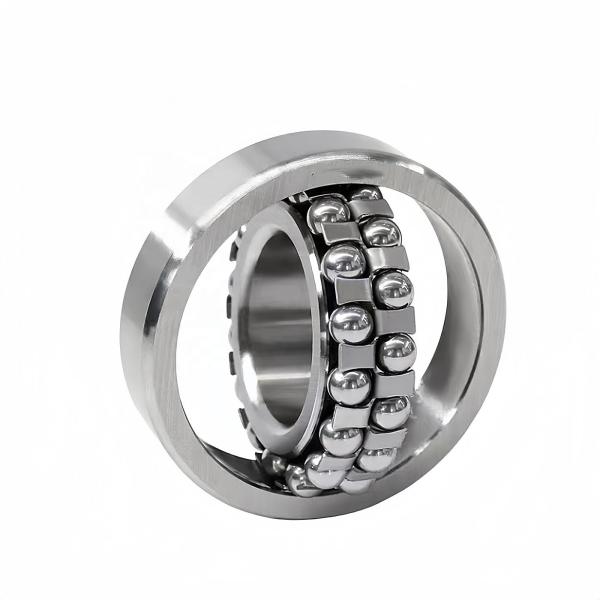

In a self-aligning bearing, the inner ring has two raceways and the outer ring has a single spherical raceway with its center of curvature coincident with the bearing axis. Self-Aligning Double Row Ball Bearings are designed to work in applications where severe misalignment exists whether from mounting or shaft deflection. The concave raceway of the outer ring in combination with two rows of balls operate over a wide range of contact angles.

Cage Material Types: Iron Cage/ M Brass Cage/ TN-9 Nylon Cage

Dimensions(mm)					Basic Load Rating(kn)			Speed(r/min)	Weight(kg)	Model
d	D	C	dynamic	static	reference	reference				Model
20	47	14	12.7	3.4	9000	0.18	11204ETN9
25	52	15	14.3	4	8000	0.22	11205ETN9
30	62	16	15.6	4.65	6700	0.35	11206TN9
35	72	17	15.9	5.1	5600	0.54	11207TN9
40	80	18	19	6.55	5000	0.72	11208TN9
45	85	19	21.6	7.35	4500	0.77	11209TN9
50	90	20	22.9	8.15	4300	0.85	11210TN9
60	110	22	30.2	11.6	3400	1.15	11212TN9

Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance Images
